Disclaimer: When configuring Auvik to back up device configurations over a NAT’d IP address it is important to understand that by changing the default IP you are changing Auvik’s default functionality to send device configuration backups to the Collector recognized IP. When changing this IP address, it is strongly recommended that this data be transmitted over a secure connection. If not set properly, through a secure channel, this may lead to backup vulnerabilities which can be leveraged by bad actors. Auvik is not responsible for misconfigured collectors and the use of unsecured connections for this data.
Auvik now has the ability to perform backups of device configurations to a Post NAT’d IP. This improved functionality will allow devices to back up configurations to collectors that are not on the local, routed network of the device. When performing backups of device configurations, the collector simply acts as a data processing engine. The Auvik collector does not store any data. All the data collected is immediately sent to the cloud where it is securely processed and stored

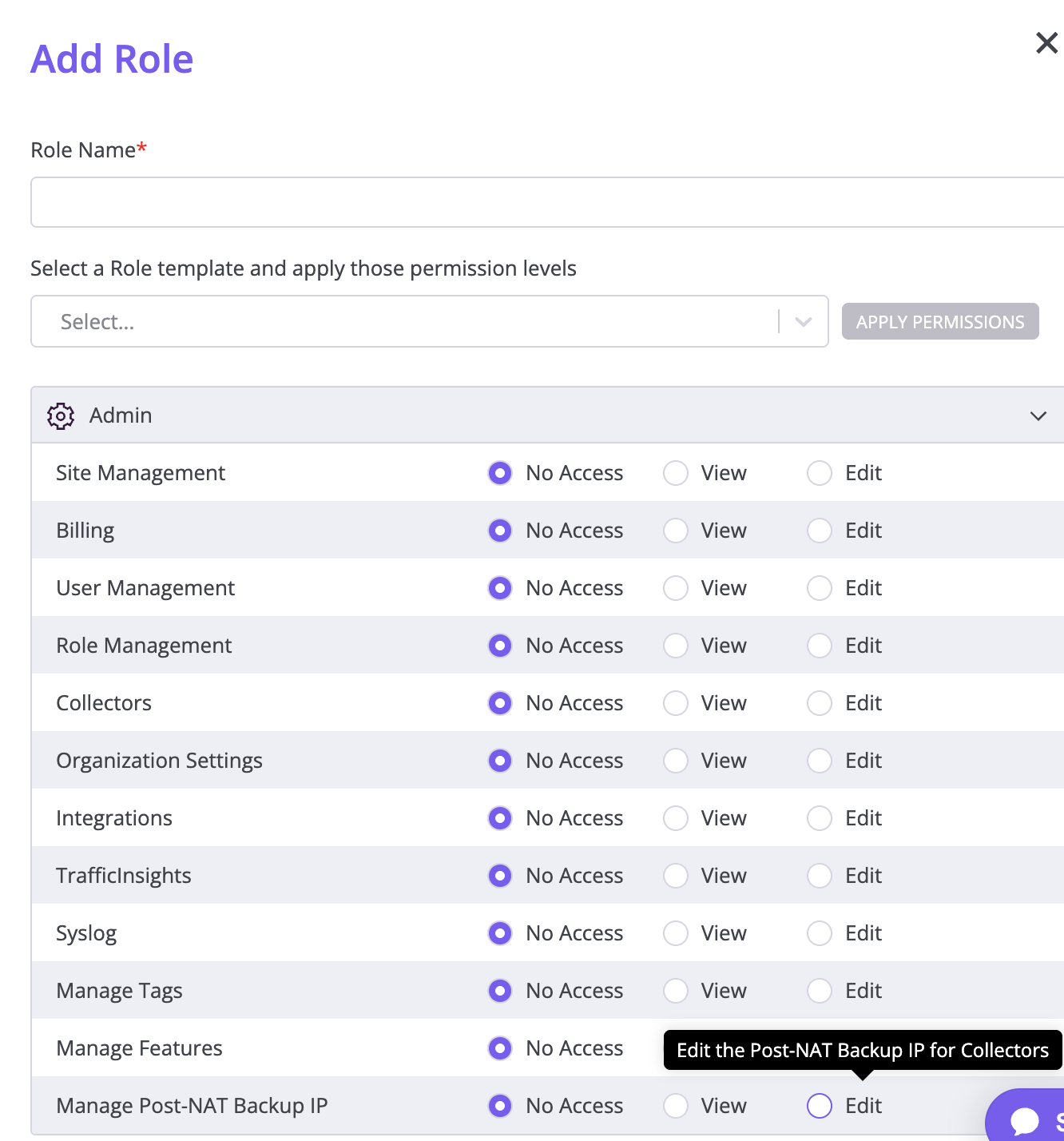

To configure this on a non-routed collector IP, Auvik needs special settings to identify the collector's IP. Only users with Manage Post-NAT Backup IP permission can edit the collector's backup IP. This is a new permission that controls access to this feature.
To reset the IP for configuration backups:
- Go to the client site.

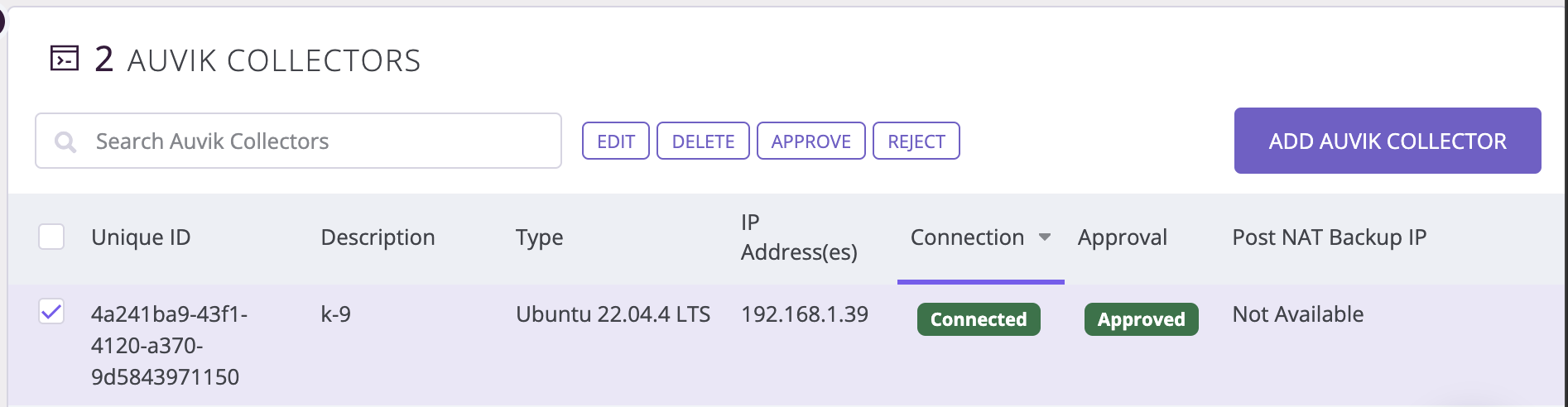

- Select Auvik Collectors from the left menu.
- Select the collector you wish to make changes to, and then select Edit.

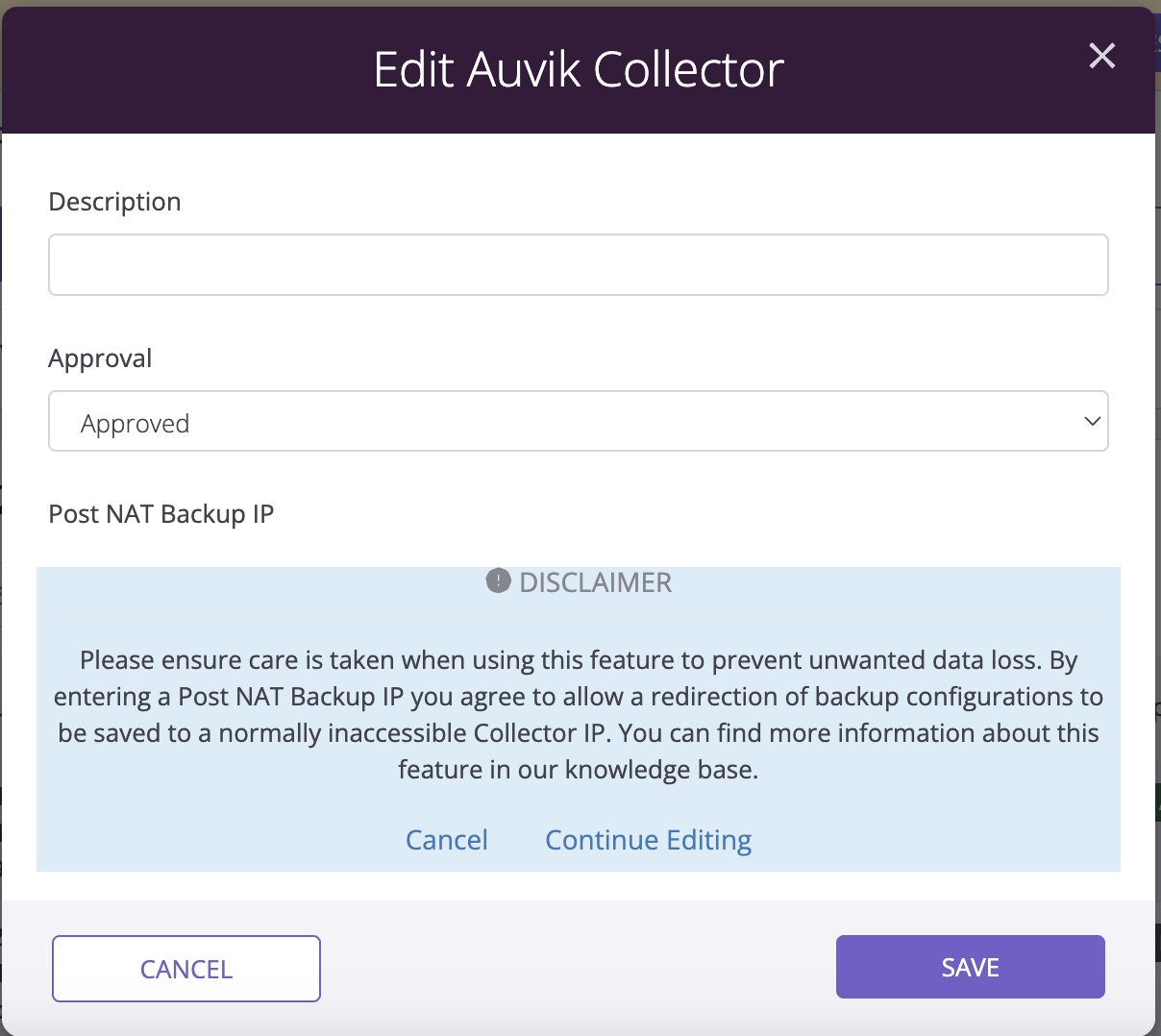

- Select the Post NAT IP box and acknowledge the warning about changing the IP by selecting, Continue Editing.

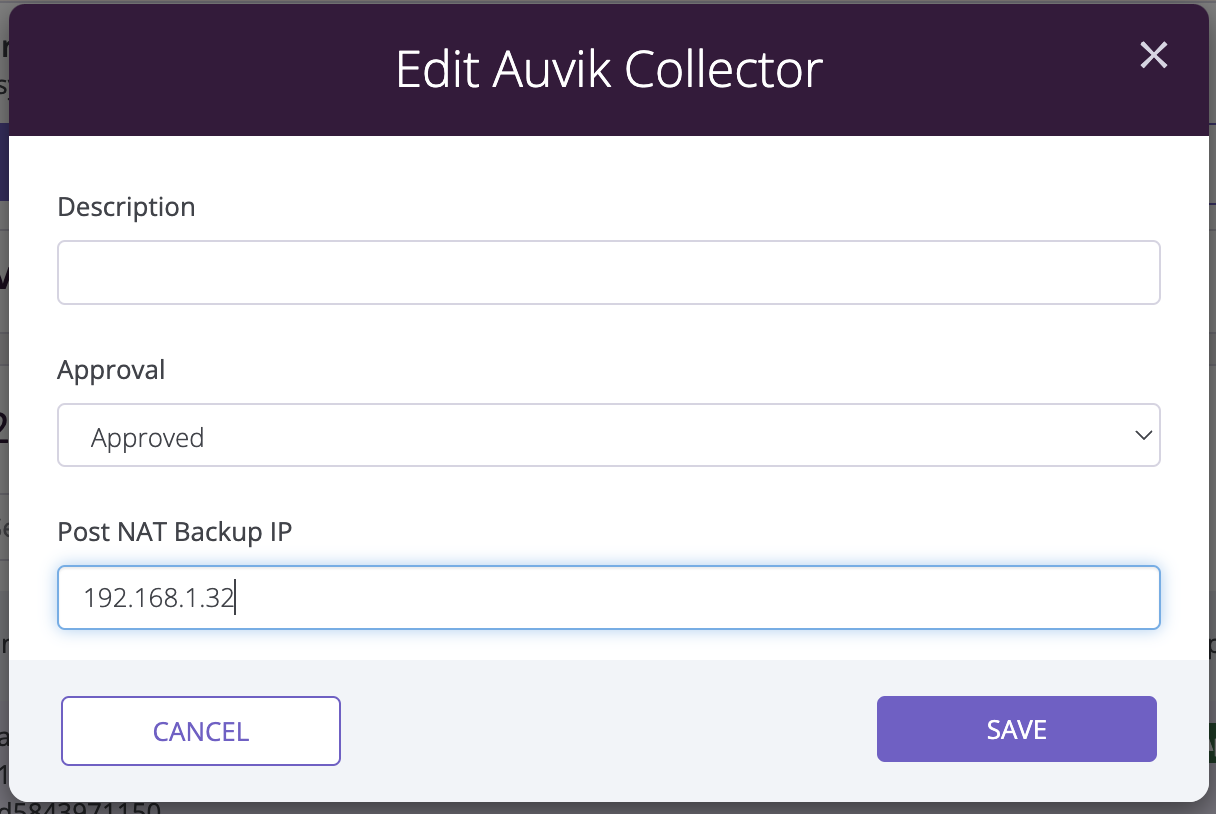

- Change the IP to the new desired IP.
- Click Save.
Once saved, all configuration backups will be directed to the updated Collector IP.
