With Auvik’s map export feature, you can easily save a copy of your whole map or any part of it. You can export the map in PDF, SVG or VSDX format.
For more information on exporting to VSDX format, click here.
Using map export

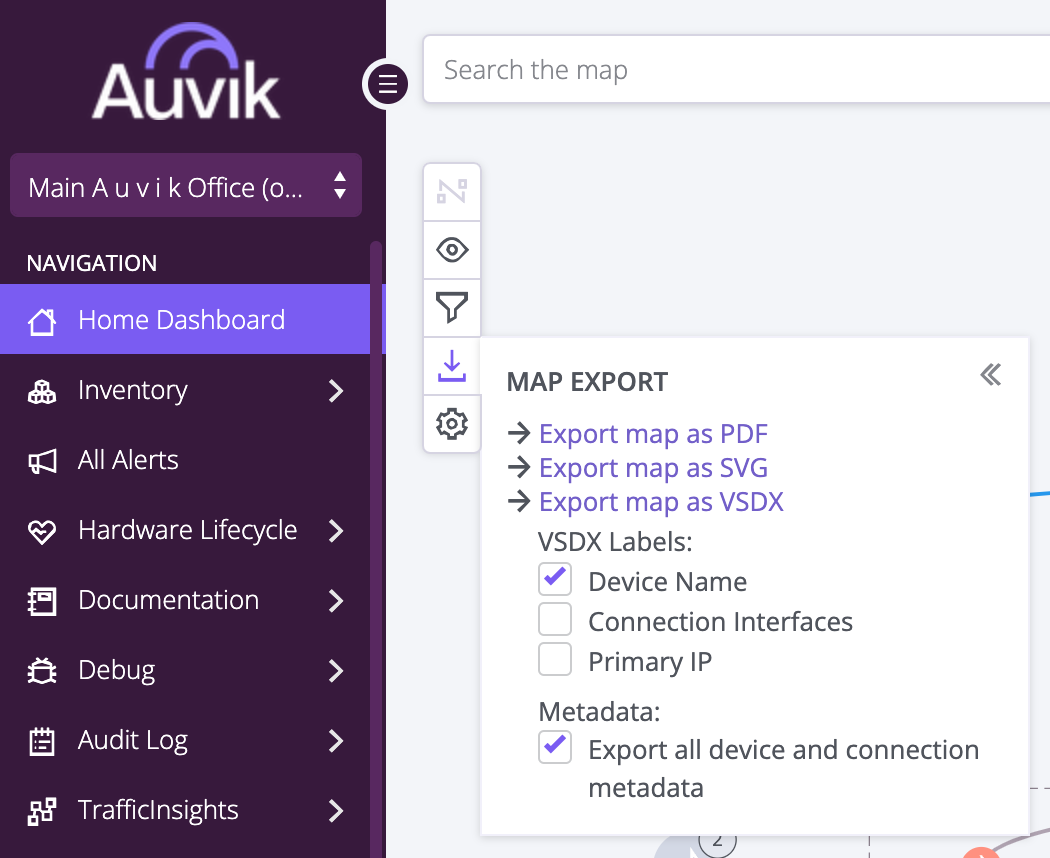

Map export is located near the top left corner of the map, below the search bar. Click the Map Export button () to get a list of export options, then choose your desired format.
You can also choose which labels to attach to the downloaded map as well as the metadata for the device and connection.
To turn on VSDX labels, click the checkbox by the label desired:
- Device Name
- Connection Interfaces
- Primary IP
To turn on Metadata, click the checkbox by Export all device and connection metadata.
The export displays exactly what you see of your map on your screen at the time of exporting. For example, if you’ve zoomed in on a particular sub-tree of your physical topology, and only that sub-tree is showing on your screen, then that’s what you’ll see in the export. This means you can capture the results from a search or filter you’ve applied to your map, giving you the ability to document any aspect of the network you want.
