For more information on editing, deleting, disabling, and enabling integrations, see How do I edit, delete, disable, or enable integrations?
Auvik connects to Google Chat for alert notifications using an incoming webhook. All of your Auvik alerts will feed into a Google Chat space. To have alerts sent to multiple spaces, create a new webhook integration for each space you’d like to post to. Webhooks can only be managed from your global site.
- Create a new Google Chat webhook for Auvik
- Add a new webhook integration in Auvik
Create a new Google Chat webhook for Auvik
- Go to the desired Google Chat space.

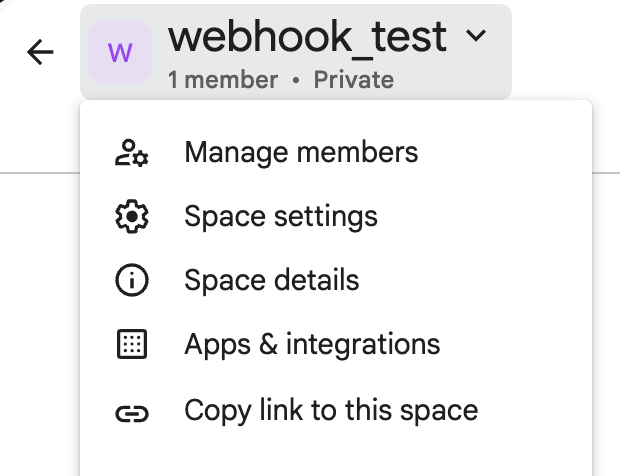

- Click on the context menu beside the space name.
- Select Apps & integrations.
- Click on Add webhooks.

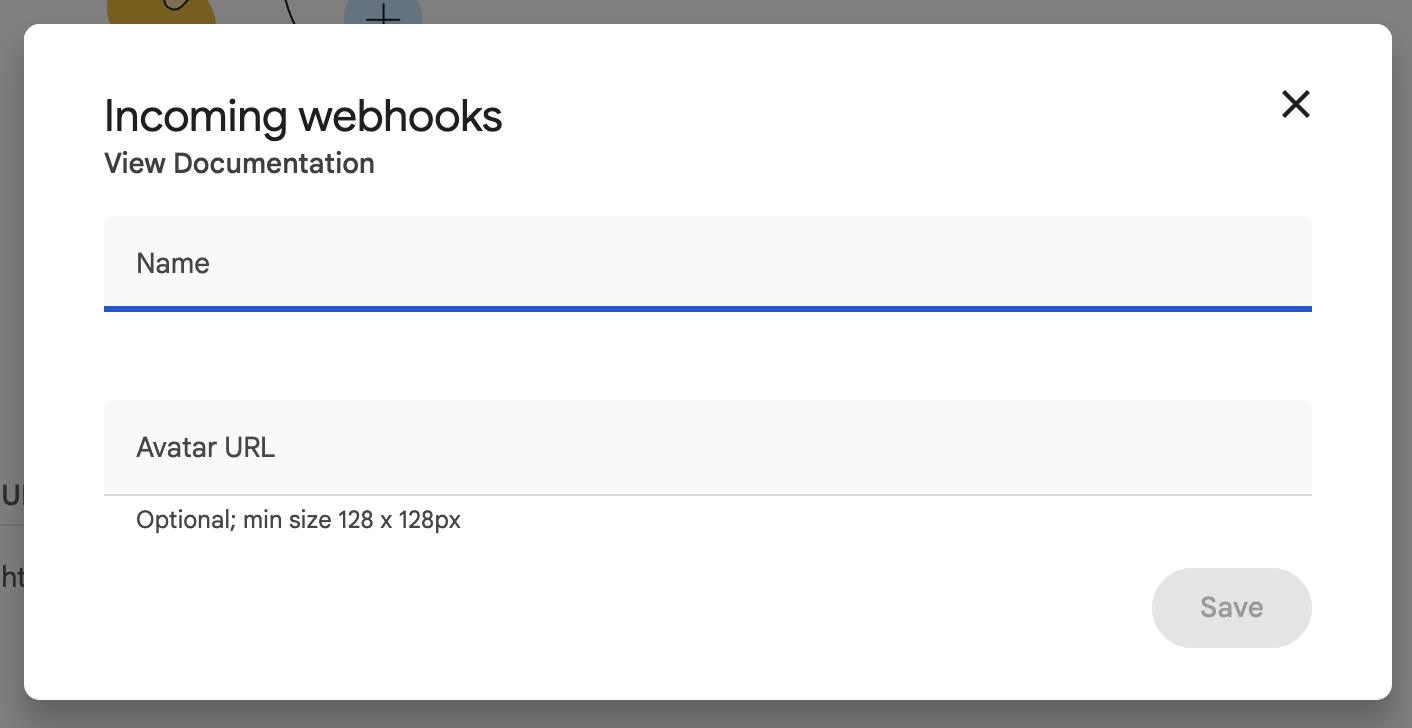

- Provide a name for the webhook.
- Click Save.

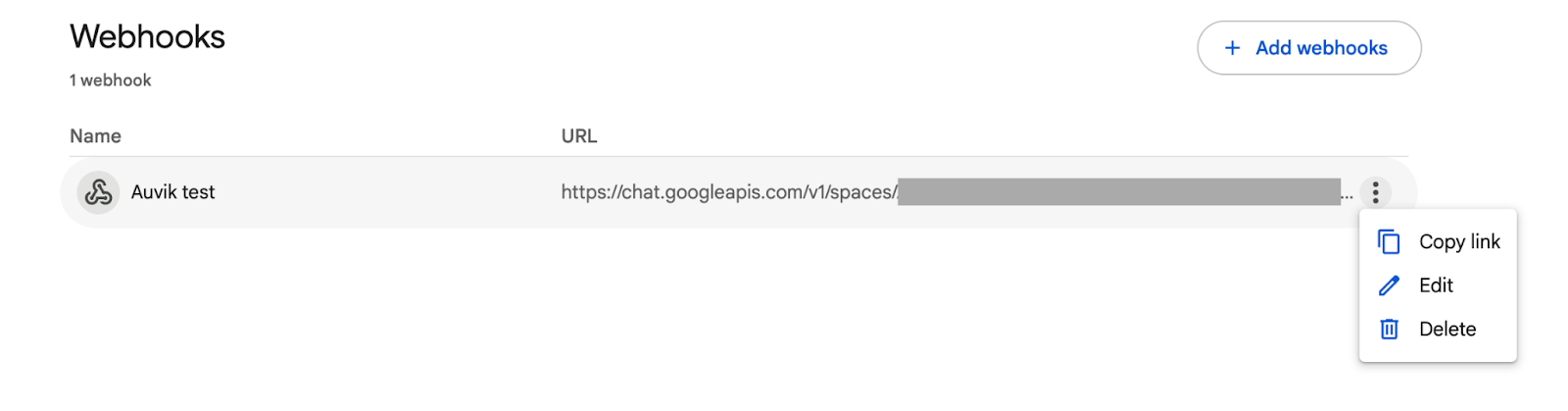

- Click on the menu beside the new webhook.
- Click Copy link.
- Save the webhook URL for use in the next step.
For details, refer to the Google Chat webhook quick start guide.
How to add a new webhook integration in Auvik
- In Auvik, click Integrations in the side navigation bar.
- Hover over the Add Integration button.
- Select Webhook.
- Enter a name for the integration in Integration name.
- Enter the API URL that the webhook will call in Webhook URL.
- Skip Add Additional HTTP headers to send.
- Set your authentication method to No Authentication.
- Enter a JSONata expression to transform the webhook payload format to one required by the Google Chat API. The minimum required format to send a message to Google Chat is a JSON with a text field as noted in the Google Chat webhook quick start guide.
-
- Paste the following in Apply transformation here box. You can refer to the JSONata getting started and documentation for a full guide on JSONata. Refer to the Google Chat API guide for creating messages on supported message content types. A more complex example is provided in the next section.
{
“text”: alertDescription
}
-
- Substitute with the desired Auvik field names.
- Use the Example Payload for the list of field names.
- View the transformed payload in Example Payload, transformed.
- Substitute with the desired Auvik field names.
- Click Test Connection to confirm your settings are accurate.
- Verify that a test message appears in the Google Chat space.
- Click Save.
Payload Transformation Example
The Auvik alerting webhook payload and the available fields are detailed in this article. Here is a sample webhook payload transformation that provides more detailed information about the alert and a link to the alert in the Auvik UI.
{
"cardsV2": [
{
"card": {
"header": {
"title": companyName
},
"sections": [
{
"header": subject,
"widgets": [
{
"textParagraph": {
"text": alertDescription
}
},
{
"textParagraph": {
"text": $join(["Entity Name: ", entityName])
}
},
{
"textParagraph": {
"text": $join(["Entity Type: ", entityType])
}
},
{
"textParagraph": {
"text": $join(["Date/Time (UTC): ", date])
}
}
]
}
]
}
}
],
"accessoryWidgets": [
{
"buttonList": {
"buttons": [
{
"text": 'View in Auvik',
"onClick": {
"openLink": {
"url": link
}
}
}
]
}
}
]
}

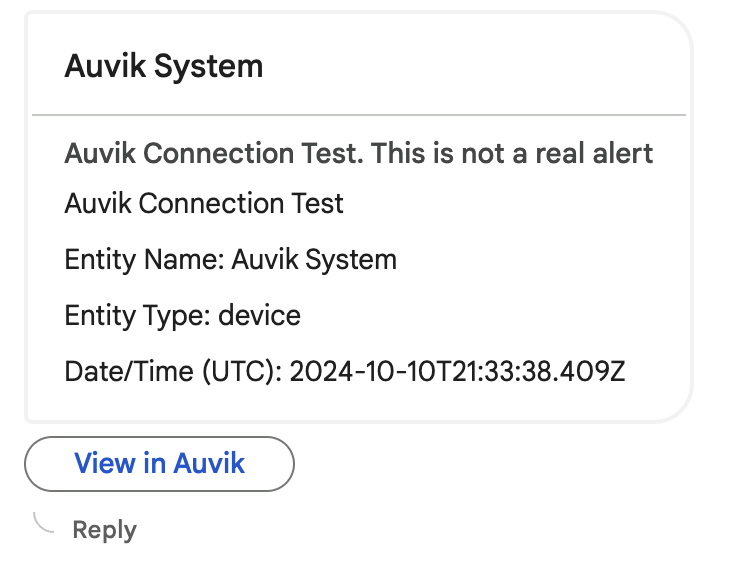

The test message in Google Chat will look something like this:
For more complex transformations, refer to the JSONata documentation. Refer to the Google Chat API guide for creating messages on supported message content types.
Configure a notification channel
Before you can use the webhook integration with Google Chat, there’s one final configuration step: creating a notification channel to be associated with the Auvik alerts you’d like sent to Google Chat.
