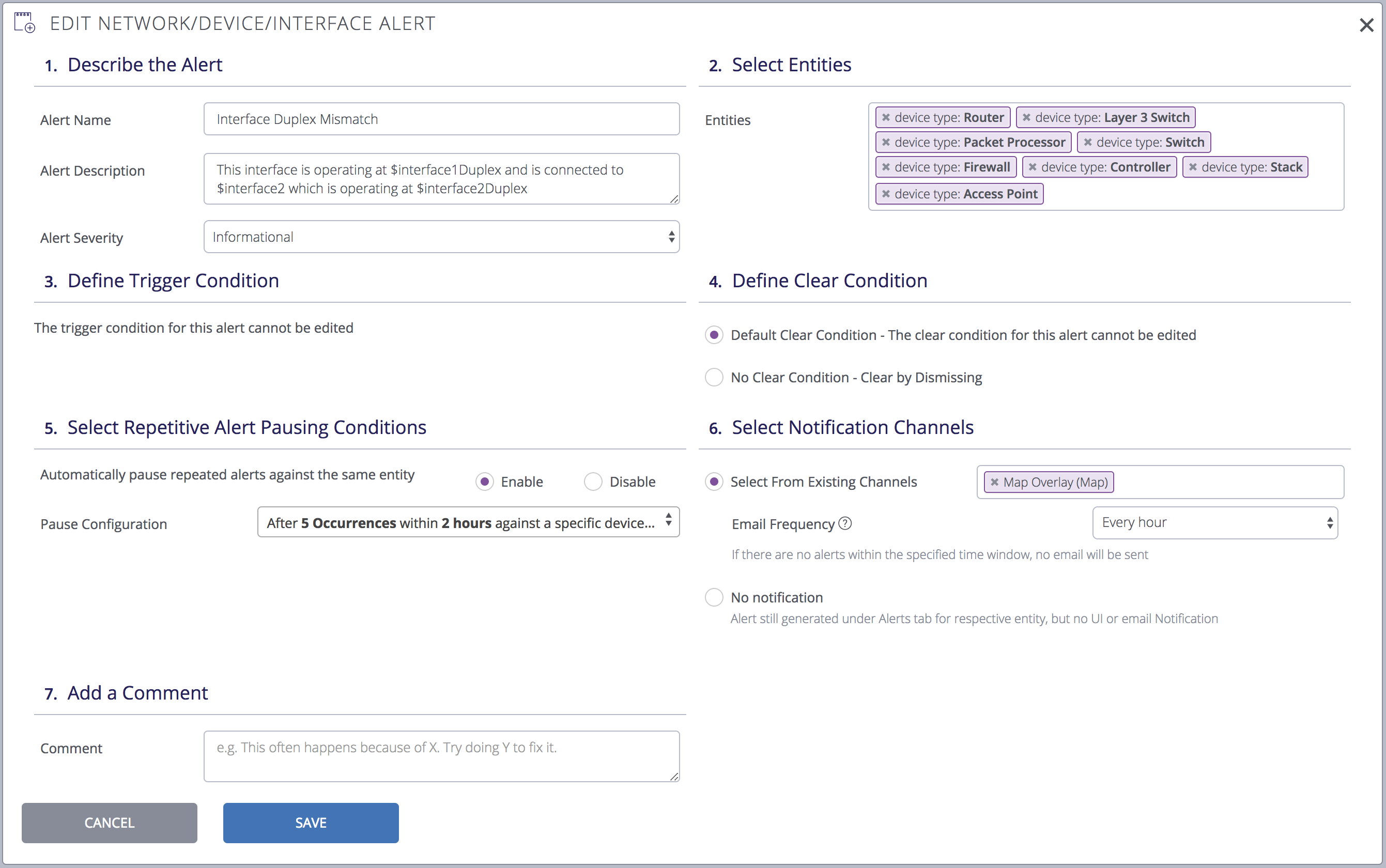

The details shown below are based on the default settings. Options for editing this alert don’t include the ability to edit the trigger or clear condition definitions. You can specify whether the alert should clear based on how it’s configured, or whether it should have no clear condition and be cleared manually.
Primary purpose: Notify of a possible misconfiguration for a device’s interfaces.
For example, one side of the connection is set to full duplex while the other is set to half duplex.
|
Alert severity |
Informational |
|
Repetitive alert pause condition |
After 5 occurrences within 2 hours against a specific entity, pause the alert for 24 hours |
|
Alert trigger condition |
Connected interfaces have different duplex modes. |
|
Alert clear condition |
Misconfiguration has been resolved. |
|
Action(s) to be taken |
Check the device’s configuration. Change the affected interface to full duplex. |
