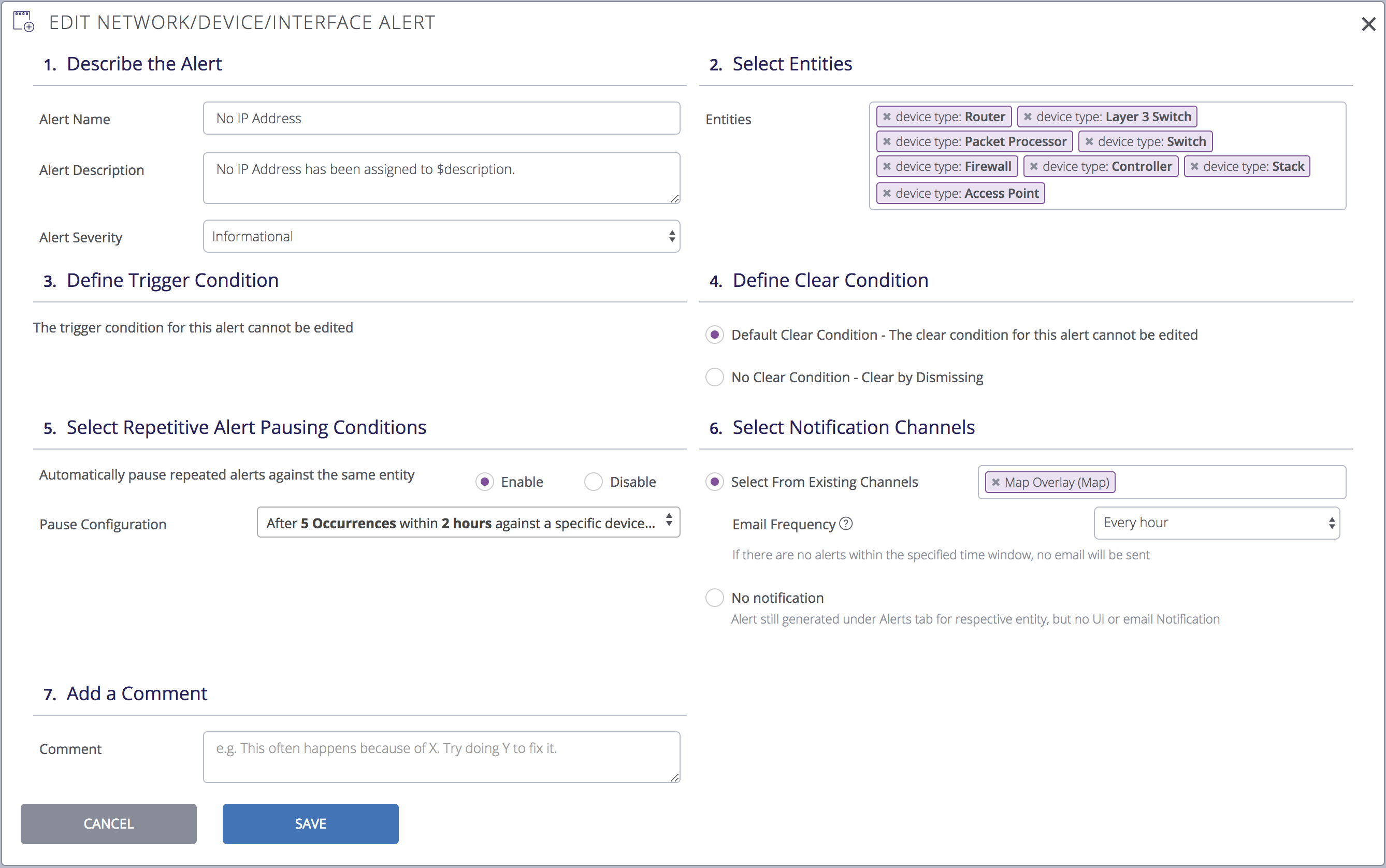

The details shown below are based on the default settings. Options for editing this alert don’t include the ability to edit the trigger or clear condition definitions. You can specify whether the alert should clear based on how it’s configured, or whether it should have no clear condition and be cleared manually.
Primary purpose: Notify when no assigned IP address is found, indicating a possible misconfiguration.
|
Alert severity |
Informational |
|
Repetitive alert pause condition |
After 5 occurrences within 2 hours against a specific entity, pause the alert for 24 hours |
|
Alert trigger condition |
No IP address has been assigned to a network element. |
|
Alert clear condition |
Misconfiguration has been resolved and the device now has an assigned IP address. |
|
Action(s) to be taken |
Check the device’s configuration and assign an IP address if one is missing. |
