How to Configure NetFlow on SonicWall Gen 7 Firewalls

These instructions assume:

• The SonicWall device is running SonicOS version 7.0 or higher.
• The date, time and time zone are correctly set on the firewall.
• You have administrative access to the firewall.
• The IP address of your Auvik collector is known.

If you have a shared collector and want to ensure that it receives netflow data to enable TrafficInsights, you will need to add the source IP address as a /32 in order for Auvik to register the flows from that specific address in the TrafficInsights portal. There may be some delay for the shared collector to receive the data after the change.

Note: Even if that source IP address is already being scanned, you must add a /32 targeting only the source IP address, due to some limitations, the collector can’t tell if it should be sent to site A or B.

To access the SonicWall web interface

1. • Open a web browser and type in your SonicWall’s  IP address.
   • Log into the web admin console.

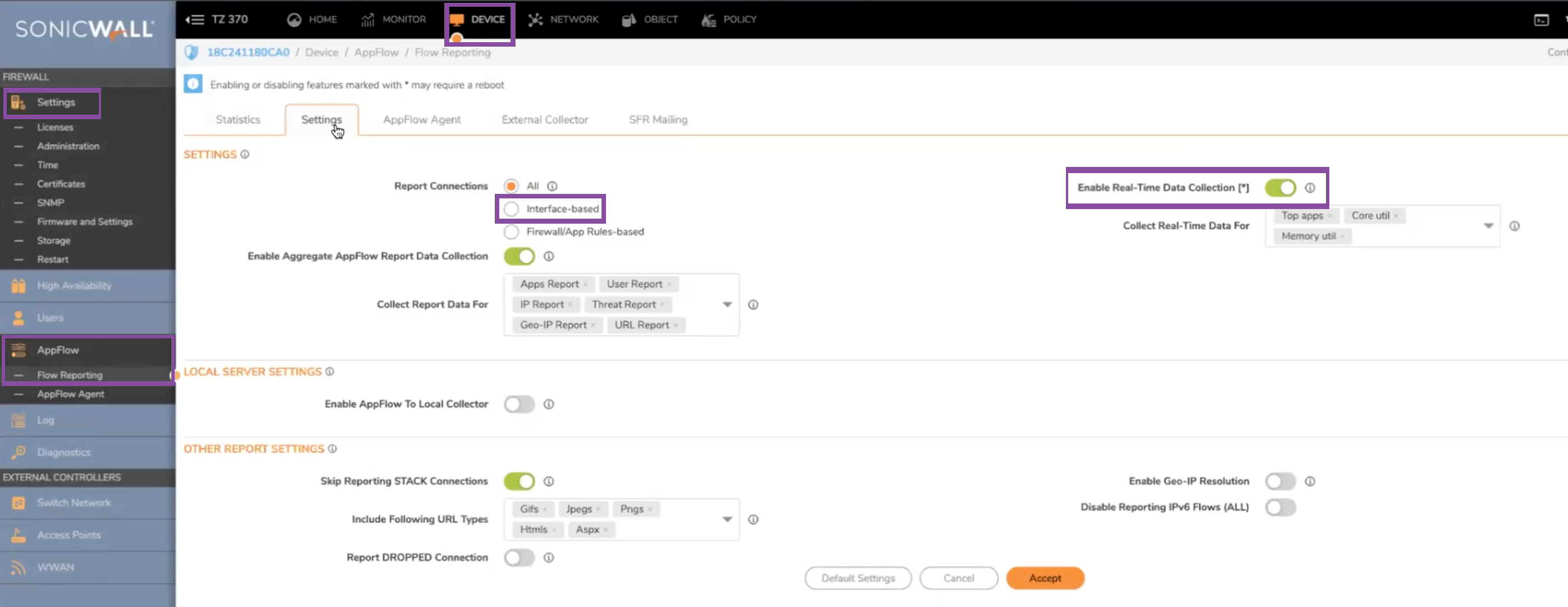

Enable  the NetFlow collector

• • Navigate to Device
  • Click on AppFlow
  • Click on Flow reporting
  • Click on Settings
  • Check Enable Real-Time Data Collection, if necessary
    Note: You must reboot the device after enabling Real-Time Data Collection
  • (Optional) Enable interface-based reporting if you prefer the flows to be tagged from the interfaces of the firewall
  • Click Accept to save the settings

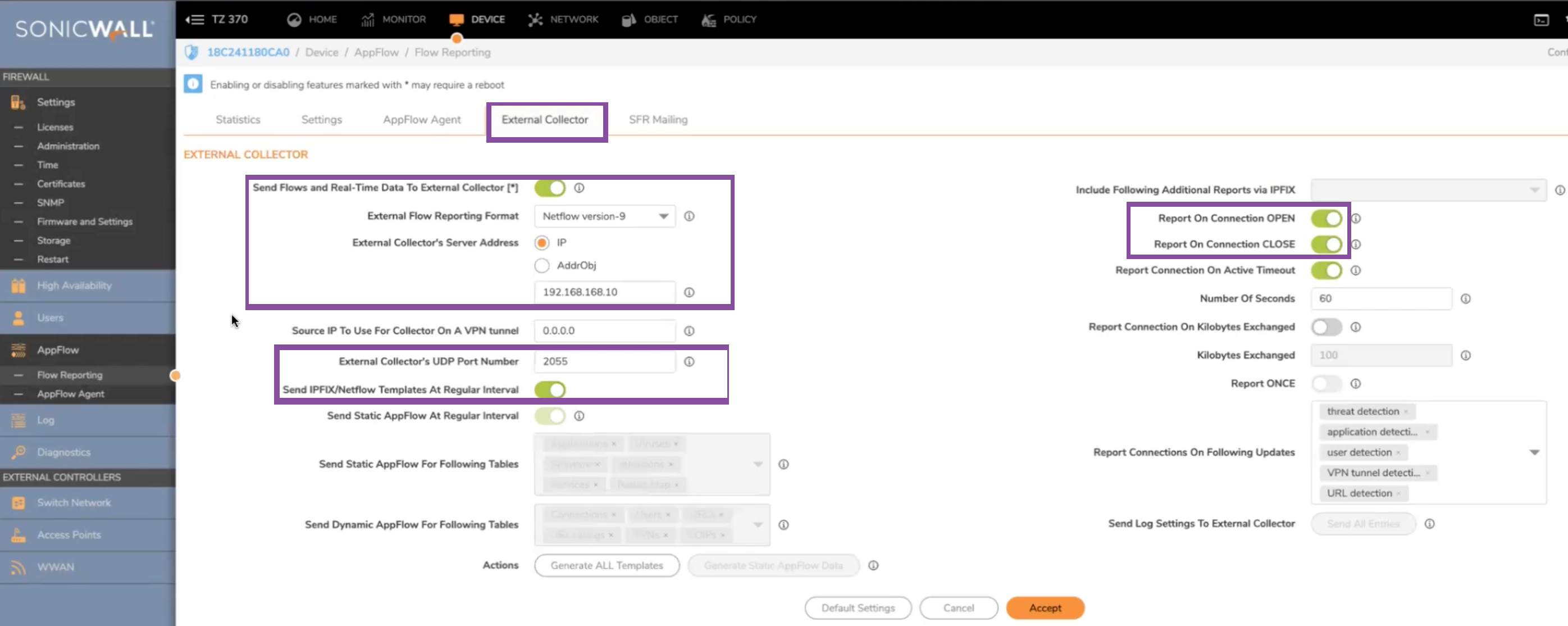

• • Navigate to AppFlow
  • Click on Flow Reporting
  • Click on External Collector
  • Select Send Flows and Real-Time Data to External Collector
  • Under External Flow Reporting Format, select NetFlow Version-9.
  • In the External Collector’s Server Address section, check IP and enter the Auvik collector IP address
  • In the External Collector’s UDP Port Number field, enter the port number you’d like to use. Choose from any of these ports: 2055, 2056, 4432, 4739, 6343, 9995, or 9996.
  • Enable Send IPFIX / Netflow Templates At Regular Intervals
  • Enable Report On Connection OPEN
  • Enable Report on a Connection CLOSE
  • Click the Generate ALL Templates button.
  • Click Accept to save the settings.

NetFlow should now be enabled on your SonicWall Gen 7 firewall device.
